Parameters

The parameter management allows you to precisely control and optimize the cutting process. In this section, you will learn how to create new parameter sets, select existing ones, and adapt them to your specific requirements.

WARNING

Special care must be taken when working with parameters. Changes to the parameters can have significant effects on the cutting process and the quality of results. It is therefore recommended to make changes only if you are familiar with the possible implications. Successful parameter combinations should be documented for different materials to ensure reproducible results.

Creating Parameter Sets

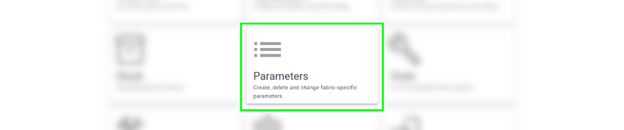

To create a new parameter set, first open the Parameters module. Click the plus button in the upper left corner to access the creation dialog. Here you can enter a meaningful name and detailed description for the new parameter set.

The configuration of a parameter set is done through two main areas: Transport and Ultrasonic. In the Transport section, you define basic movement parameters that are crucial for precise material guidance. A key parameter is the length correction factor, specified in millimeters per meter. This factor enables exact length compensation. For example, with a length correction factor of 4 mm/m, a programmed 2-meter cut would actually be extended to 2.008 meters (2 meters + 2 × 4 mm).

The settings for transport speed and transport acceleration come into play especially when no active cutting is taking place, such as when transporting full lanes.

The Ultrasonic section includes specific cutting parameters, particularly the head pressure, measured in Bar. For pressure settings, the principle is: as low as possible, as high as necessary. Increased pressure leads to exponentially increasing wear of the sonotrodes. As a guideline: if the required pressure reaches about 2.5 Bar, the sonotrodes should typically be sent for regrinding. Depending on the cut quality, regrinding may be necessary earlier. The speeds for cross and longitudinal cuts are also set in this section and are crucial for cut quality.

When creating a new parameter set, standard values are automatically suggested, which can serve as a starting point for further optimization. After carefully configuring all parameters, save the parameter set by pressing the Add button.

INFO

The ability to create, edit, or delete parameter sets may be restricted by user rights. Depending on your user account's access rights, these functions might not be available.

Editing Parameter Sets

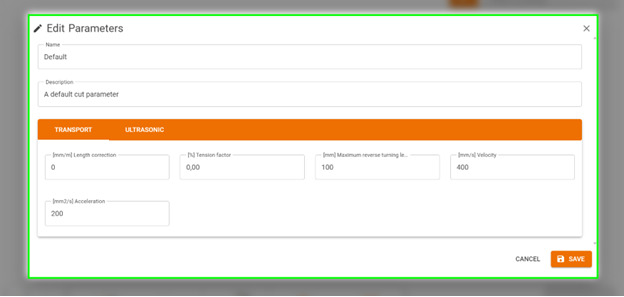

Editing an existing parameter set follows the same principle as creation. Click the pencil icon next to the parameter set you want to edit to open the editing dialog. You'll find the same interface as during creation, but with the current values of the parameter set already filled in. After adjusting the desired values, you can save the changes.

Selecting and Applying Parameter Sets

There are two ways to use a parameter set. You can activate the desired set either through the parameter selection menu or directly via the Select button. The selected parameter set will then automatically be used for all subsequent cutting operations.

Flexibility in Parameter Application

A special advantage of the system lies in its flexibility. The machine persistently stores the chosen parameters across all operating modes, so you don't need to redefine your optimized settings for each mode. Nevertheless, you have the option to adjust parameters directly during operation.

In each operating mode – whether it's manual cutting mode, calculation mode, or job list mode – you'll find the currently used parameter set in the upper right corner. Using the pencil icon next to the parameter display, you can open an editing dialog and immediately adjust the settings. These changes take effect immediately and allow you to flexibly respond to different material requirements or cutting tasks.
