Starting and stopping services

In case the installation was performed on Windows, the Node Services are installed as Windows services. The Node Services have certain dependencies that were also installed as Windows services. These include the MongoDB database, the RabbitMQ message broker, and the Microsoft SQL database. Normally, the Node system or Node services do not need to be restarted or stopped. In exceptional cases, such as updates, this may be necessary.

To start, stop, or restart services, proceed as follows:

1. Log in to the Windows server.
2. Click the Start button and type "Services" in the search. If your server is set to English, enter "Services".
3. Once the Services window is open, you can start, stop, or restart services using the right mouse button.

TIP

• Make sure you have administrative rights to manage services.
• Avoid stopping services without good reason, as this can lead to system outages.

Start sequence

The Node system requires a specific start sequence. If you want to stop the services, execute the sequence in reverse order.

MongoDB

RabbitMQ

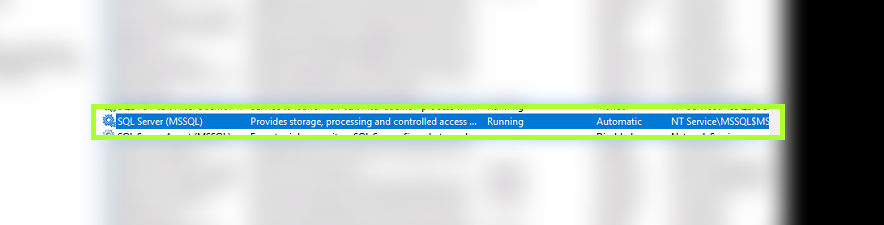

Microsoft SQL Server

INFO

Depending on the named instance, the SQL Server name may differ from the image.

Finally, start the Node Services, which are all marked with the prefix JagV4:

• Config Service
• Identity Service
• Blob Service
• Core Service
• Culture Service
• Notify Service
• Report Service
• Storage Service
• Workflow Service
• RLS Link Service
• Parameter Service
• Remoting Service
• Converter Service
• Gateway Service

WARNING

The sequence is particularly important to ensure that all dependencies are loaded correctly.
