Order

An order is a line in the order overview. During an import, multiple orders can be imported simultaneously. After completing an order, the next order in the list is automatically selected.

Order Fields

Name	Description
Name	Each order can have a name that can be used for identification. If no name is specified during import, an ascending number is automatically generated.
Comment	The comment field can display additional information about an order.
Quantity	The quantity indicates how many tapes should be produced. The value must be greater than zero.
Processed Amount	The processed amount indicates how many tapes have already been produced. Once this value matches the quantity, the order is completed.
Start Fold	The start fold indicates the length of the initial fold in millimeters.
Length	The length indicates the length of the middle section in millimeters.
End Fold	The end fold indicates the length of the final fold in millimeters.
Tape Width	The tape width indicates the width of the tape used in millimeters.

Order Creation

Manual creation of an order is done via the Add Manually button. Clicking it opens a dialog box where the required data can be entered. Fields marked with an asterisk are mandatory. After entering the data, confirm the new entry by clicking Save. If you cannot see the Add Manually button, it may have been disabled in the configuration.

Edit Order

To edit an order, click on the pencil icon in the row of the corresponding order.

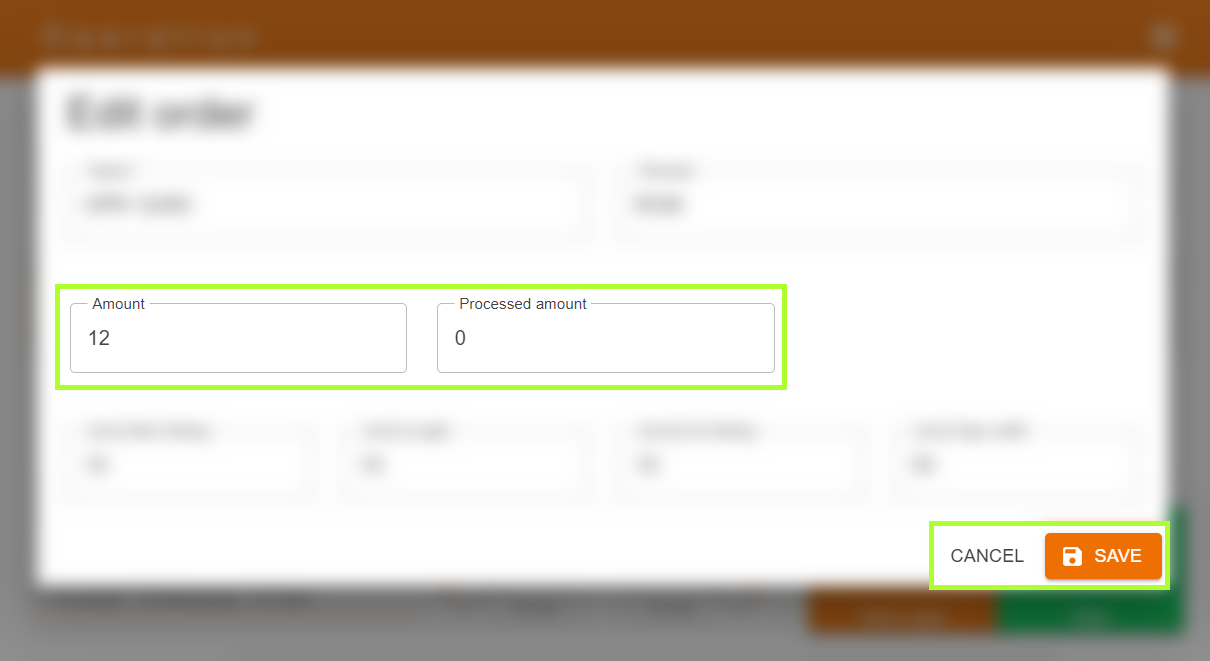

Edit the fields according to your requirements. To complete an order, change the Processed Amount to the same value as the Quantity.

When you're done editing, click the Save button.

Delete Order

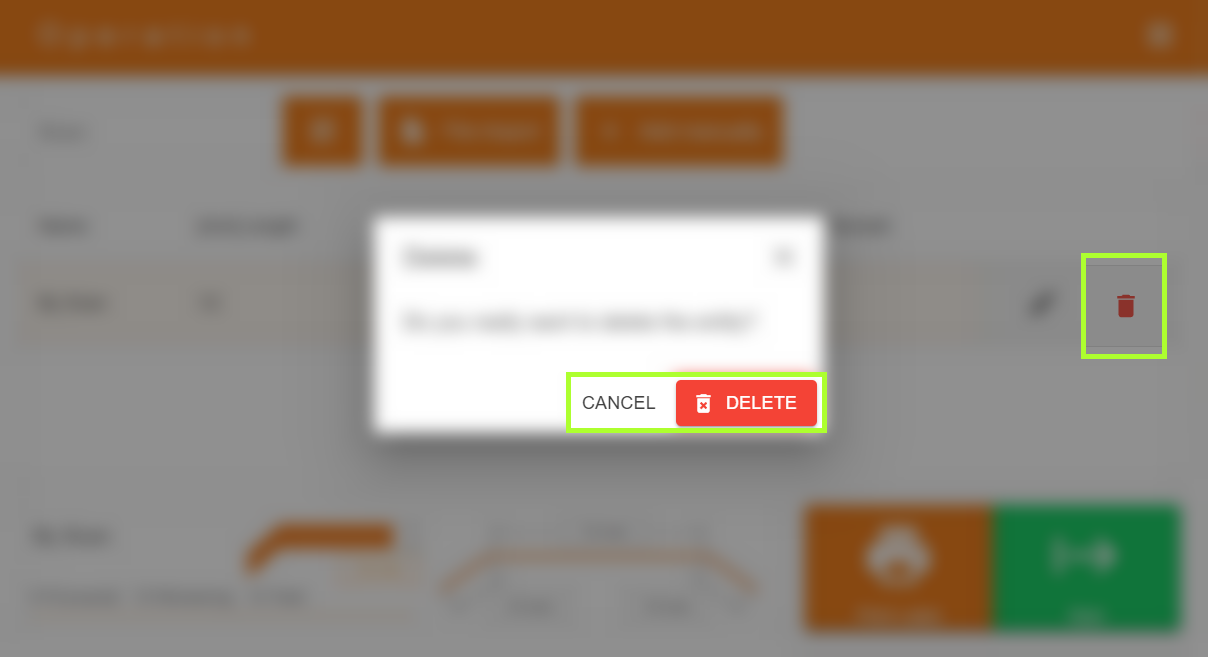

If you want to delete an order, you can do so by clicking the trash bin icon in the corresponding order row. After clicking, you will be asked for confirmation.

If you agree, the order will be removed from the list.

Start Order

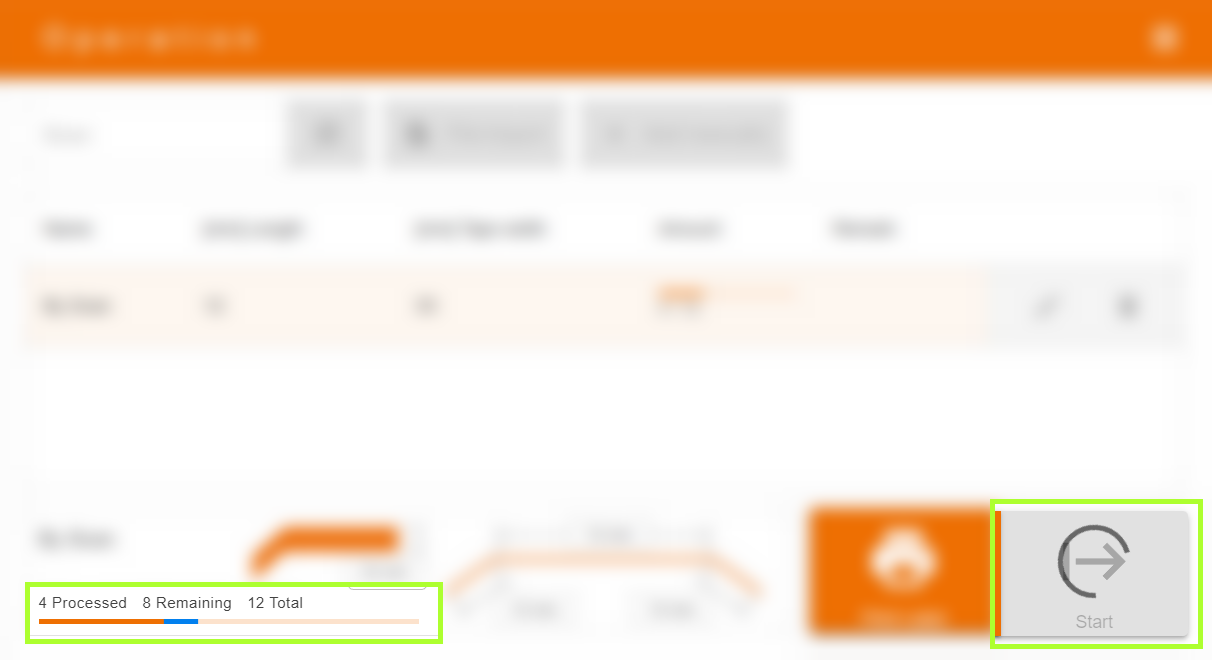

To start an order, select the corresponding order from the list. The selected order will then be highlighted in the list and displayed in the lower part of the screen, where additional information such as fold length and length are shown. Click the green Start button to start the order. If automatic label printing is activated, a label will be printed after starting.

Please note that during machine operation, the user interface is locked and no new orders can be added, old orders edited, or deleted. After the machine work is completed and the stacker is reset (if present), the user interface will automatically unlock. The progress is either displayed depending on the PLC version or jumps to the completed amount at the end. Starting the order is only possible if the order is not yet completed. If this is not the case, you can adjust the processed amount using the edit function.
